Proteome of E.coli K-12 (MG1655): Change in protein abundance across different media

Most common folds in E.coli K-12:

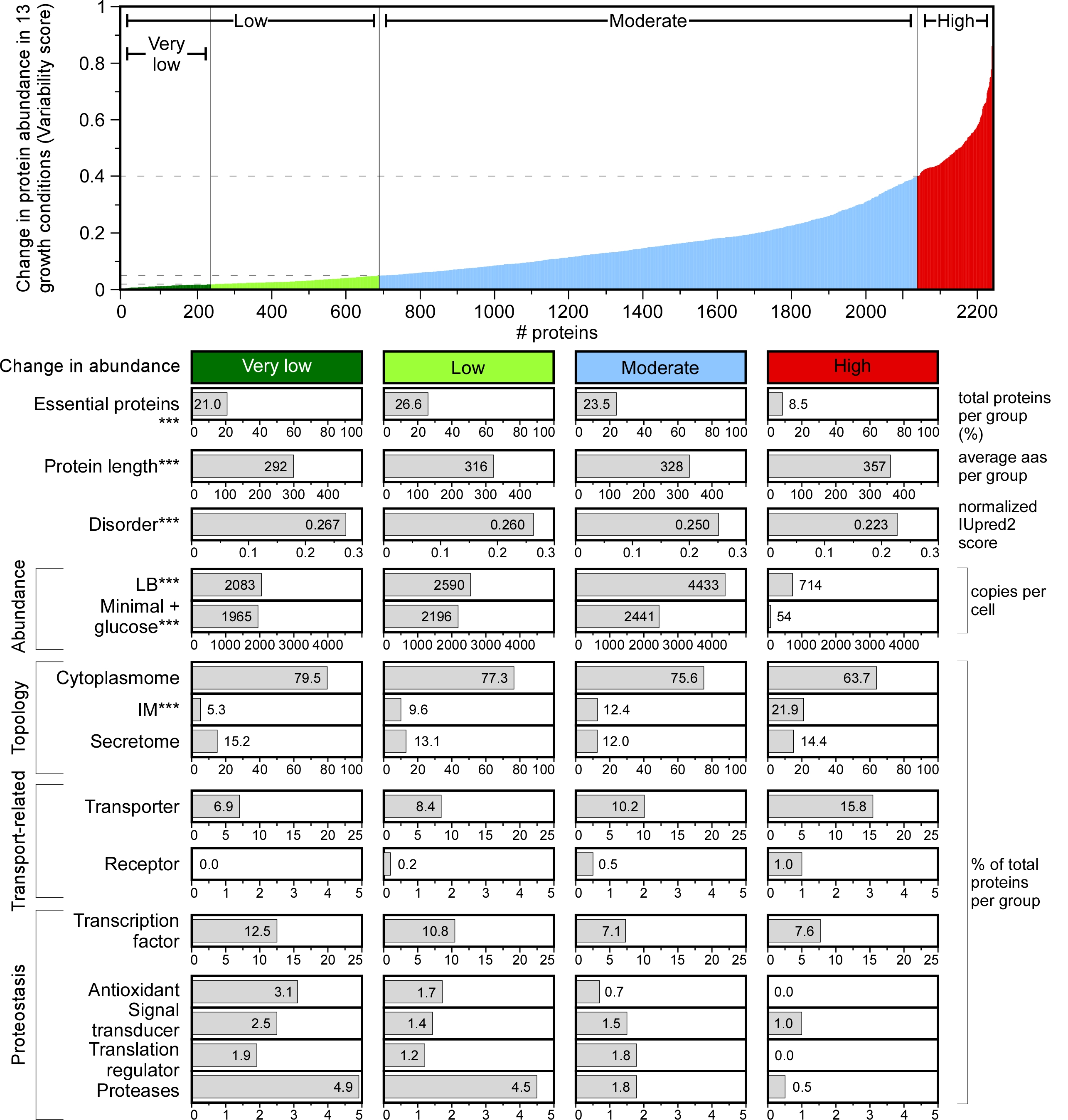

Change in protein abundance plotted using variability score (from Schmidt et al., 2016: PMID 26641532) for each protein.

Proteins were classified in the indicated groups.

Statistical analysis was done using Kruskal-Wallis Test or Fisher&#s exact test: * = p<0.05; ** = p<0.01; *** = p<0.001 for the comparison between very low and high score groups. Abbreviation: aas = amino acids.

Data on the abundance and the variability score can be found in the downloads section.

For more information: Loos et al., 2019.
